Cable Tray

Agarwala Engineering Works was founded in 1991. We are a growing organization and since 1991 our operations and client base has only grown. With the growing client business, we expanded to international markets and are delighted to mention that we have a great market base there too. Our organization is capable of catering to export orders of any quantity.

We cater to the needs of Industrial and Electrical goods and equipment at low-cost and high quality. A dedicated and well-trained team of engineerslooks after the production. Our managerial functions are coordinated through our central office located in Howrah.

Perforated

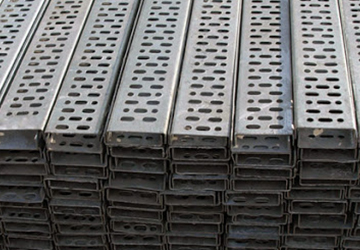

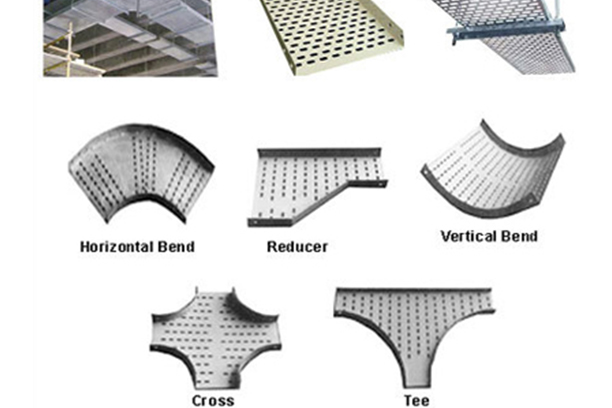

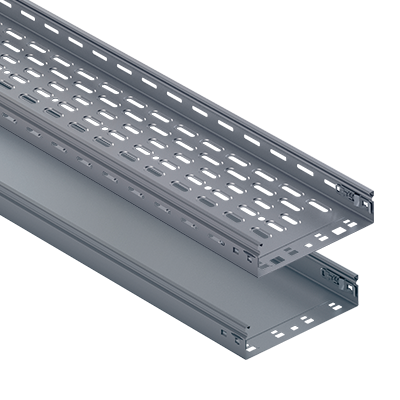

Perforated Cable Tray with Accessories:

Perforated Cable Trays are fabricated out of Single Sheet Steel conforming to IS: 1079,1973 / IS: 513, 1994

Thickness Range: 1.6 mm, 2.0 mm, 2.5 mm & 3mm.
Standard Widths: 50 mm, 100 mm, 150 mm, 300 mm, 450 mm, 600 mm
Standard Length: 2500 mm.

If other than above mentioned widths are required, the Trays can be fabricated as per the specification of Customers / Customer Consultants.

Aluminium Perforated Cable Tray:

Aluminium Perforated Cable Trays are fabricated out of Aluminium Sheets conforming to IS: 737, 1986 with thickness varying from 2 mm to 3mm.
Procedure of fabrication is similar to that of M.S. Trays but welding is done by TIG machine & Aluminium filler Rods. Fabricated Aluminium Trays are washed in Caustic Soda to remove the carbon deposits.

Perforated Cable Tray with M.S. Angles and Channel:

Perforated Cable Trays are fabricated in which M.S. Angles/channels are used as runners and M.S. Flats as rung, spacing is 250 mm for 2500 mm Length Cable Trays and 300 mm for 3000 mm Lengths. Rungs can be provided single / double, as per the customer’s choice, double rungs are provided with a cap of 10 mm, for clamping the cables.
The Cable Trays and Accessories shall be Hot Dip Galvanized after fabrication as per IS: 2629, 1985 & IS: 4759, 1984. Amount of zinc deposit for Trays and Coupler Plates shall be maintained as per the IS table.

Ladder Type

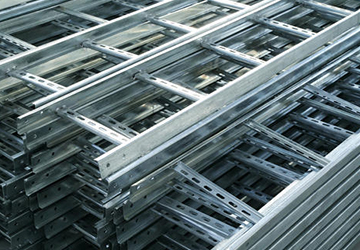

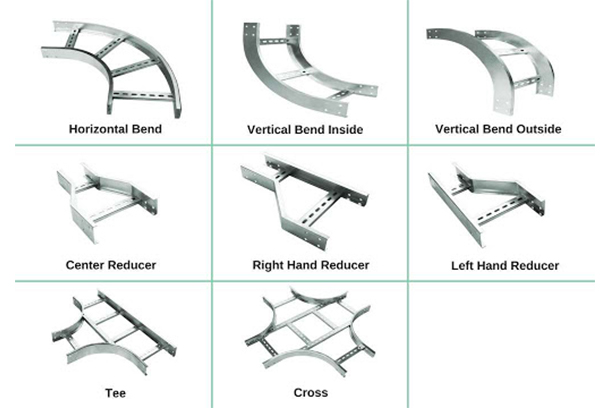

Ladder Type Cable Tray with Accessories:

Ladder type Cable Trays are fabricated out of Steel Sheets conforming to IS: 1079, 1973 & IS: 513, 1994

Thickness Range: 1.6 mm, 2.0 mm, 2.5 mm and 3 mm.
Raw Material: Steel Sheets are procured from reputed suppliers like TATA Steel, SAIL & ESSAR Steel etc.
Standard Length: 2500 mm V
Various Widths: minimum being 50 mm wide and maximum 1200 wide.

Slotted rungs are welded to the side runners at every 250 mm or 300 mm interval. At both the ends of the Cable Trays three or four circular holes are provided for connecting the adjacent Cable Trays or Accessories by Couplers Plates.

Aluminium Ladder Cable Tray:

Aluminium Ladder Type Cable Trays are fabricated out of Aluminium Sheets conforming to IS: 737, 1986 with thickness varying from 2 mm to 3mm.
Procedure of fabrication is similar to that of M.S. Trays but welding is done by TIG machine & Aluminium filler Rods. Fabricated Aluminium Trays are washed in Caustic Soda to remove the carbon deposits.

Ladder Cable Tray with M.S. Angles and Channel:

Ladder Type Cable Trays are fabricated in which M.S. Angles/channels are used as runners and M.S. Flats as rung, spacing is 250 mm for 2500 mm Length Cable Trays and 300 mm for 3000 mm Lengths. Rungs can be provided single / double, as per the customer’s choice, double rungs are provided with a cap of 10 mm, for clamping the cables.
The Cable Trays and Accessories shall be Hot Dip Galvanized after fabrication as per IS: 2629, 1985 & IS: 4759, 1984. Amount of zinc deposit for Trays and Coupler Plates shall be maintained as per the IS table.
